Company Portal

Added in version 6.3.5.

The Company Portal is a web portal for the end users of the company or organization that runs the CipherMail Gateway. It should not be confused with the Portal, which is used by external recipients to read secure messages, retrieve PDF passwords or use Webmail Messenger. The Company Portal is used by your own users to send SMS Text messages to external recipients.

The main use case is the PDF password mode “Send Generated Password Back to Sender” (see PDF Messenger). In this mode, the gateway generates a password for the encrypted PDF and emails it back to the sender. The sender is then responsible for delivering that password to the recipient over a different channel. The password notification email can optionally contain a link to the Company Portal for every recipient, which opens the “Send SMS” dialog with the recipient’s email address pre-filled. The user only has to check the telephone number and send the message.

To make it easy to look up telephone numbers, the Company Portal provides two address books which map an email address to one or more telephone numbers:

Personal address book

Maintained by the end user in the Company Portal itself.

Company address book

Maintained by the gateway administrator and shared by all users. This address book is read-only for the end user.

When a telephone number is looked up, the entries of both address books are combined. If an email address occurs in both address books, the entry from the personal address book takes precedence.

Accessing the Company Portal

The Company Portal is served on port 8444:

https://<hostname>:8444

Replace <hostname> with the fully qualified host name of the CipherMail Gateway.

Note

The Company Portal is intended for internal users. If the gateway is reachable from the Internet, it is advised to restrict access to port 8444 with a firewall to the internal network or VPN.

Pages

After signing in, the following pages are available:

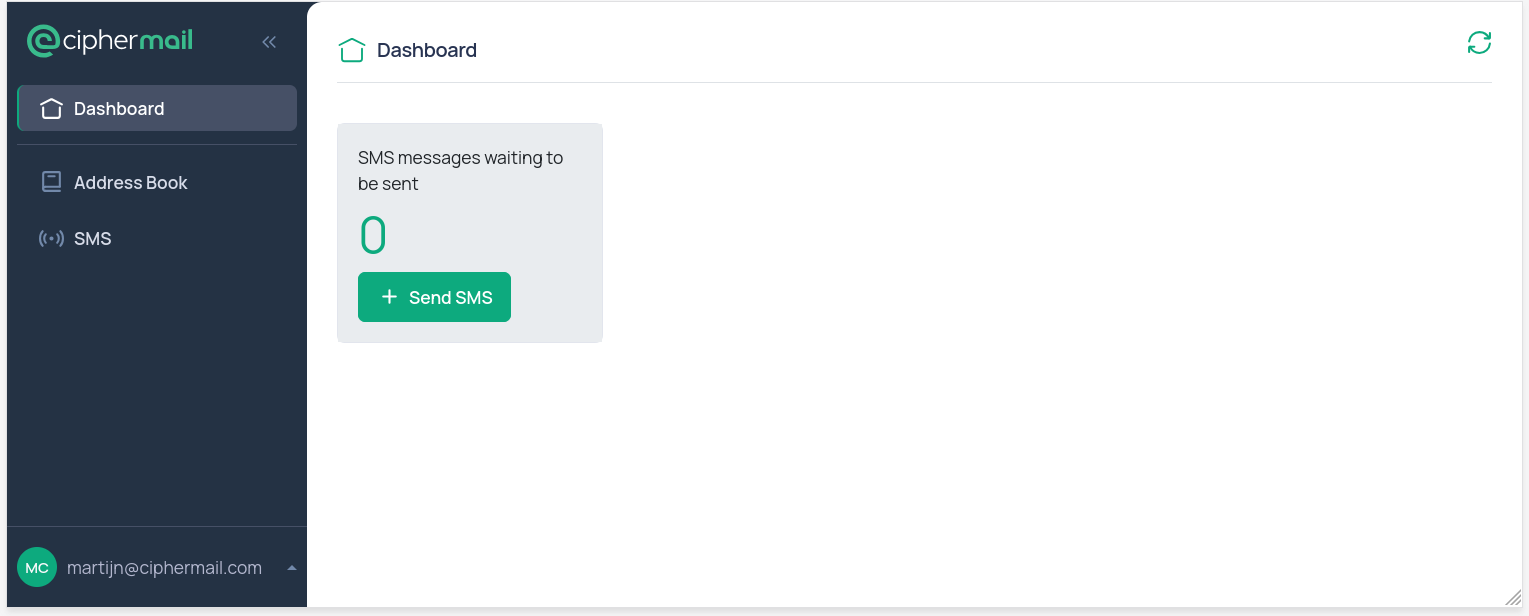

Dashboard

Shows the number of SMS Text messages which are still queued for the logged in user and provides a shortcut for creating a new SMS Text message.

Address Book

Shows the combined address book. Entries from the personal address book can be added, edited and deleted. Entries from the company address book are shown read-only.

SMS

Shows the SMS Text messages sent by the logged in user which are not yet delivered, i.e., which are still queued. Messages which are handled by the SMS transport are removed from the queue. If a message cannot be delivered, the “Error message” column explains why. From this page a new SMS Text message can be created and queued messages can be deleted.

Hint

A user only sees and can only delete the SMS Text messages which were sent by that user. The full SMS queue of the gateway is only visible for an administrator (see SMS).

Sending an SMS Text message

When creating a new SMS Text message, the user can enter a telephone number directly, or enter (or select) an email address for which the telephone number is looked up in the combined address book. The telephone number must be in international format, starting with the country code (for example, +44…). Optionally, the email address and telephone number can be added to the personal address book when the message is sent.

Note

An SMS transport must be configured and active before any SMS Text message can be delivered (see SMS). Without a working transport, messages sent from the Company Portal will remain in the queue.

Hint

To protect the SMS transport against misuse, the number of SMS Text messages a user can send is rate limited. By default, a user can send at most 10 SMS Text messages per minute.

Configuration

The Company Portal settings can be found on the settings page under Settings ‣ Portal ‣ Company. Like all other gateway settings, they can be set at the global, domain and user level, which makes it possible to enable the Company Portal for the complete organization, for specific domains or for individual users only.

The following settings are available:

Enabled

If enabled, the user is allowed to log in to the Company Portal. By default this setting is disabled, i.e., no one is allowed to log in.

Portal Password

The password with which the user logs in to the Company Portal. The password is stored encoded (hashed). This setting is only relevant for username/password authentication. This is a user-only setting: a password shared by the users of a domain would let anyone who knows it log in as any of them.

Company Portal Two-Factor Authentication enabled

If enabled, two-factor authentication (2FA) is enabled for the user (assuming a 2FA secret is configured for the user). This is a user-only setting because the 2FA secret is user specific.

Company Portal Two-Factor Authentication required

If enabled, the user must set up 2FA before the Company Portal can be used.

Company Portal Base URL

The base URL of the Company Portal, for example https://ciphermail.example.com:8444. The base URL is used for the links to the Company Portal in email templates and as the basis for the password reset URL.

Important

The “Send by SMS” link is only added to the password notification email if the Company Portal Base URL is set.

Company Portal Password Policy

The password policy which is enforced when a Company Portal password is set. By default, a password must be at least eight characters long.

Company Portal Password Reset Enabled

If enabled, the user is allowed to reset the Company Portal password with the “Forgot password” option on the login page. A password reset email is sent to the user’s email address using the “Company Portal Password Reset Mail Template” (Settings ‣ Templates). A password reset link is valid for 24 hours.

The settings can also be managed with the CLI. For example, to enable the Company Portal for all users and to set the base URL:

ciphermail-cli property global set --name company-portal-enabled --value true
ciphermail-cli property global set --name company-portal-base-url --value "https://ciphermail.example.com:8444"

To enable the Company Portal for a single user only, set the property for that user:

ciphermail-cli property user set --email user@example.com --name company-portal-enabled --value true

Company address book

The company address book is managed by the administrator and can be edited on the settings page under Settings ‣ SMS ‣ Settings ‣ SMS Company Address Book. Because this is a normal gateway setting, a company address book can be configured globally or per domain.

Every entry contains an email address and one or more telephone numbers and optionally a first name, last name and organization.

Authentication

The Company Portal supports three authentication methods:

• Username and password

• LDAP

• Entra ID (OIDC)

Important

Whichever authentication method is used, the user is only allowed to log in if the “Enabled” setting applies to that user (see Configuration). The login name must always be a valid email address. This email address identifies the user and is used as the sender of the SMS Text messages.

Username and password

With username/password authentication, the user logs in with their email address and the Company Portal password. A user account must exist on the gateway and a Company Portal password must be set for that user.

The password can be set by an administrator on the user’s settings page (Settings ‣ Portal ‣ Company ‣ Portal Password) or with the CLI:

ciphermail-cli property user set --email user@example.com --name company-portal-password --value <password>

Alternatively, if “Company Portal Password Reset Enabled” is set, the user can set an initial password with the “Forgot password” option on the login page.

Hint

The number of failed login attempts is rate limited. By default, an account is temporarily banned after five failed login attempts.

LDAP

The Company Portal can authenticate users against an external LDAP server. The LDAP server should support bind authentication. LDAP authentication is configured in the same way as LDAP authentication for the admin (see LDAP ), with the difference that the Ansible variables are prefixed with ciphermail_company_portal_backend__ instead of ciphermail_backend__:

ciphermail_company_portal_backend__ldap_authentication_uri: ''
ciphermail_company_portal_backend__ldap_authentication_user_dn_pattern: ''
ciphermail_company_portal_backend__ldap_authentication_search_filter: ''
ciphermail_company_portal_backend__ldap_authentication_search_base: ''
ciphermail_company_portal_backend__ldap_authentication_deref_link_flag: false
ciphermail_company_portal_backend__ldap_authentication_search_sub_tree: false
ciphermail_company_portal_backend__ldap_authentication_search_time_limit: 0
ciphermail_company_portal_backend__ldap_authentication_bind_user_dn: ''
ciphermail_company_portal_backend__ldap_authentication_bind_password: ''

The meaning of the individual variables is explained in LDAP .

Example configuration with direct bind:

---
ciphermail_company_portal_backend__ldap_authentication_uri: 'ldaps://ldap.example.com:636'
ciphermail_company_portal_backend__ldap_authentication_user_dn_pattern: 'mail={0},ou=Users,o=ciphermail,dc=example,dc=com'

Example configuration with search bind:

---
ciphermail_company_portal_backend__ldap_authentication_uri: 'ldaps://ldap.example.com:636'
ciphermail_company_portal_backend__ldap_authentication_search_base: 'o=ciphermail,dc=example,dc=com'
ciphermail_company_portal_backend__ldap_authentication_search_filter: 'mail={0}'
ciphermail_company_portal_backend__ldap_authentication_search_sub_tree: true
ciphermail_company_portal_backend__ldap_authentication_bind_user_dn: 'uid=admin,ou=Users,o=ciphermail,dc=example,dc=com'
ciphermail_company_portal_backend__ldap_authentication_bind_password: 'password'

After creating or changing the Ansible override file, run the playbook:

sudo cm-run-playbook

Important

With LDAP authentication for the Company Portal, the authenticated user must be a valid email address, i.e., the users log in with their email address. The LDAP configuration should therefore bind or search on an attribute which contains the email address (for example mail or userPrincipalName).

Note

LDAP authentication is used in addition to username/password authentication. A user with a Company Portal password can therefore still log in with that password.

Attention

The Company Portal tries every name which is entered on the login page against the LDAP server, so every account of the directory can be tried, not only the accounts of Company Portal users. Each wrong password counts towards the account lockout policy of the directory (for example of Active Directory). The Company Portal stops asking the LDAP server for a user after five failed login attempts from an IP address, but it cannot prevent that someone who knows the user names locks those accounts in the directory, which locks the users out of everything the directory signs them in to, not only out of the Company Portal.

Limit the accounts which can be tried with a search bind whose search filter only finds the users who may use the Company Portal, for example the members of a group. An account which the search does not find is never bound to, so it cannot be locked through the Company Portal. A direct bind (user_dn_pattern) binds to every name, so it cannot be limited this way. Leave user_dn_pattern empty when you use the search filter: it is tried before the search.

Example search filter for Active Directory, for the members of the group “CipherMail Company Portal”:

---
ciphermail_company_portal_backend__ldap_authentication_search_filter: '(&(userPrincipalName={0})(memberOf=CN=CipherMail Company Portal,OU=Groups,DC=example,DC=com))'

memberOf only matches direct members. To include the members of nested groups in Active Directory, use memberOf:1.2.840.113556.1.4.1941:= instead of memberOf=. With OpenLDAP, memberOf requires the memberof overlay.

Limiting who can reach the Company Portal login, for example only from the internal network or over a VPN, reduces the risk further.

Entra ID

The Company Portal can authenticate users with OpenID Connect (OIDC) using Microsoft Entra ID. Setting up Entra ID for the Company Portal is similar to setting up Entra ID for the admin (see EntraID ), with two important differences:

• A separate Ansible role, and therefore a separate set of Ansible variables, is used for the Company Portal.

• Any email address which can log in with OIDC is allowed to log in to the Company Portal. Contrary to the admin, a user does not have to be added to the gateway prior to the first login. It is therefore advised to enable the Company Portal globally or per domain.

• A Company Portal user is an email address, so the user is always taken from the email address in the ID token, and every Entra ID login is checked for the email domain claim. Contrary to the admin, the user cannot be found by object ID; keep ciphermail_company_portal_entraid__user_name_attribute at email.

With another OpenID Connect provider, a login whose email address the provider says is not verified (the standard claim email_verified is false) is refused, and so is a login whose user is not the email address of the claims, see Other OpenID Connect providers . Keep the user name attribute of the registration at email, the only claim email_verified is about. Only connect a provider where users cannot set their own email address, and enable the Company Portal only for the company’s own domains.

To set up Entra ID authentication for the Company Portal, complete the steps below.

1. Create an App Registration on the Entra ID page

2. Create a client secret

3. Add the email domain claim

4. Create an Ansible override file

5. Run the playbook

Creating the App Registration and the client secret, and adding the email domain claim, is done in the same way as described in EntraID , with the difference that the “Redirect URI” must be set to the Company Portal:

https://<hostname>:8444/api/login/oauth2/code/entraid

Replace <hostname> with the fully qualified host name of the CipherMail Gateway.

Create the Ansible override file using the Cockpit File Browser (or use an SSH client)

sudo vi /etc/ciphermail/ansible/group_vars/all/company-portal-entraid.yml

---
ciphermail_company_portal_entraid__enabled: true

# must be set to your Azure Tenant ID
ciphermail_company_portal_entraid__azure_tenant_id: '<tenant-id>'

# must be set to the client id
ciphermail_company_portal_entraid__client_id: '<client-id>'

# must be set to the client secret
ciphermail_company_portal_entraid__client_secret: '<client-secret>'

# must be set to the fully qualified external hostname of the gateway
ciphermail_company_portal_entraid__hostname: 'ciphermail.example.com'

Replace <tenant-id> with your tenant ID, <client-id> with the client ID (which can be found on the “App registration overview page”) and <client-secret> with the client secret value.

After creating or changing the Ansible override file, run the playbook:

sudo cm-run-playbook

When the Company Portal login page is opened, a “Login with Entra ID” option is shown. Selecting this option starts the OpenID Connect (OIDC) sign-in process.

Hint

If sign-in fails, verify that the redirect URL exactly matches what is configured in Entra ID, that the email address of the Entra ID account is a valid email address for which the Company Portal is enabled, that the ID token has the email and xms_edov claims (see Add the email domain claim), and that time is synchronized on all systems.

Attention

Without the email and xms_edov claims, every Entra ID login to the Company Portal is refused. The check can be switched off by setting ciphermail_company_portal_entraid__require_verified_email_domain to false, but then whoever can set the email address of an Entra ID account, a guest included, can log in to the Company Portal as any user. As with the admin, an Entra ID admin who may set the email address of accounts is trusted either way.

If the check is switched off, require assignment in Entra ID and assign no guest accounts, see Limit who can sign in, so that only the accounts you assign can sign in. When you assign a group, make sure it contains no guests, for example with a dynamic group with the rule user.userType -eq "Member".

Hint

The email domain claim makes sure that the address is genuine, not that it belongs to your organisation: a guest from another organisation, or a guest who signs in with a Microsoft account, a Google account or a one-time passcode, has a verified address of its own and can sign in. Because the Company Portal creates the user at the first login, limit who can sign in in Entra ID as well, see Limit who can sign in: assign the employees who use the Company Portal, or a group of them, to the application of its App Registration. Guest accounts can then not sign in unless they are assigned. Enabling the Company Portal only for your own domains, instead of globally, keeps outside addresses out as well.

Note

The Company Portal back-end handles an unreachable Entra ID the same way the admin back-end does: it starts with Entra ID login switched off and switches it on as soon as Entra ID can be reached, see When Entra ID cannot be reached. The settings described there are set for the Company Portal with the ciphermail_company_portal_backend__ variants of the Ansible variables listed there.
